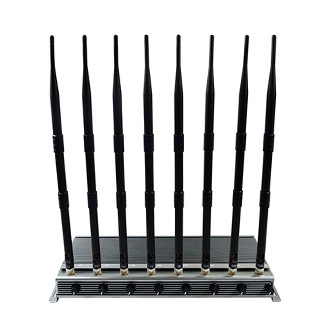

8 Bands Jammer X8 plus
Ref: X 8 plus Marca: Jammer
$ 200.00
Space for info
Lorem ipsum dolor sit amet, consectetur adipisicing elit. Ipsam, nisi.
Características
Features
* High output power, Total up to: 46W;
* 8 chancel design, 4-8 watt each band;
* External high gain 2.5db Omni-directional antennas;
* all the TX frequency covered down link only;
* Built-in good cooling system inside three fans, Working
non-stopped;
* Can adjust or turn off any single
band without influencing the other bands operation;
* Independent module design of each
channel, easy maintenance (if have anydamaged frequency band, replace with new
PCB directly, no need for professional equipment such as frequency analyzer);
Application:
It can be applied in a meeting room, conference room, museum, gallery,
theater, concert hall, church, temple, restaurant, classroom, training center,
factory, bank.
Specifications
Total Output Power: 46 Watt;
Cover Radius: 20-60m (under
Signal level ≤-85dBm)@according to the signal density mobile network;
Power Supply: AC110-240V to DC24V;
Jamming type: Sweep Jamming;
Antenna Type: 3dBi external omni-directional;
Operating Temp: -20 to +50℃;
Storage Temp: -40 to +60℃;
Humidity: 5%-80%;
Cooling System: High efficiency
aluminum alloy radiator, Build-in 3 cooling fan;
Working Time: Not-stop Working Operating;
Dimension (LXWXH): 388*145*55mm
not include antennas;
Inner box dimension: 470*270*130mm;
Weight:3.5kg;
Orden Information
VodasafeX8Plus+A: Jamming for all Mobile Phone
4G/3G/2G /WiFi2.4G/WiFi5.2
1.CDMA850MHz: 851-894MHz; 39dBm/8W;
2. Wi-Fi5.2G: 5100-5500MHz; 36dBm/4W;
3.DCS or PCS: 1805-1880 MHz or 1920-1990MHz; 38dBm/6W
4.3G2100MHz: 2110-2170MHz; 38dBm/6W
5.4G1LTE: 700-803 MHz or 790-862MHz; 37dBm/5W
6. 4G2LTE1700MHz: 1700-1800MHz;
37dBm/5W;
7. 4GWiMAX: 2500-2690
MHz or 2300-2400MHz;36dBm/4W;
8. Wi-Fi2.4G: 2400-2500MHz;
36dBm/4W;
Total Output Power: 42W
VodasafeX8Plus+B: Jamming for all Mobile Phone
4G/3G/2G/WiFi2.4G/CDMA450MHz
1.CDMA850MHz:851-894MHz; 39dBm/8W;
2.GSM900MHz: 925-960MHz; 39dBm/8W;
3.DCS or PCS: 1805-1880MHz or 1920-1990MHz; 38dBm/6W;
4.3G2100MHz:2110-2170MHz; 38dBm/6W;
5.4G1LTE700MHz: 700-803MHz or
790-862MHz; 37dBm/5W;
6.CDMA450MHz:450-470MHz; 37dBm/5W;
7.4G WiMAX: 2500-2690 MHz or 2300-2400MHz; 36dBm/4W;
8.Wi-Fi2.4G: 2400-2500MHz; 36dBm/4W;
Total Output Power: 46W
Optional Function :Remote
control on/off (3-5m)
OEM customized service can be offered
Package contents:
1pc Signal Jammer
1pc AC Charger
8pcs Antennas
